VA hides own 2007 and 2010 reports confirming large biomedical waste site with high groundwater radiation, chloroform gas under Brentwood School athletic field
News & Analysis
The proposed master plan for the West LA Department of Veterans Affairs fails to include 2007 and 2010 VA studies confirming high radiation and chemicals in its biomedical nuclear dump partially under a dog park. The VA had ordered and paid for the studies.
Left out of the VA master plan, which closed public comment December 7 and will be finalized in early 2016, was the VA’s findings of high Radium-226, Radium-228, Uranium-238, Bismuth-214 and other radionuclides in the dump’s groundwater, which has flowed offsite at levels requiring notification of water authorities.
The master plan envisions a future neighborhood at the current location of the now fenced off dump, yet the 889-page document did not include information about the chemicals the VA found at the large site such as carbon disulfide, 2-butanone, acetone and toluene. There is no mention in the master plan of whether Brentwood School was informed that its southernmost athletic field was found to have extremely high levels of chloroform and benzene in gas rising up from the dirt that kids have been sliding in for years.
The 2015 VA master plan is the result of a successful lawsuit to re-focus the West LA VA on the veterans, especially homeless ones, instead of renting off the land to places like Brentwood School, which is petitioning to continue leasing the land at rock bottom rates.
The $1 million VA dump study, prompted in 2007 by an EnviroReporter.com investigation begun in 2001, proceeded in two phases in 2007 and in 2010, when Phase II results really started taking off as the testers drilled, dug, sniffed and sampled. Even ignoring obvious places of dumping, and a slew of veterans’ tombstones tossed into the dump, the lab results were astonishing.
The report showed that Radium-226 (Ra-226) and Radium-228 (Ra-228) in dump groundwater exceeded California’s Maximum Contaminant Level (MCL) for drinking water by 60.6 percent. The VA was required to notify state water authorities of the MCL violation as the VA’s groundwater has beneficial users and is protected at the source. EnviroReporter.com could find no evidence that it did.
The VA didn’t include its own pollution-revealing reports in the master plan even though they’re available online (Executive Summary, Volumes 1, 2 and 3) but hidden on the West LA VA’s website. The proposed master plan also has nothing of the VA’s March 2, 2007 Phase I Final Radiological Inspection Report which EnviroReporter.com reported on and analyzed.
That the VA thought it could pull off this dump disappearing act with the publicity it has already garnered is puzzling. The dump has the potential to derail the master plan, because the plan has suppressed crucial environmental information about a hazardous waste site leaking radiation and chemicals. The draft final 2015 master plan says that it must adhere to the National Environmental Policy Act (NEPA). “Achieve the fullest possible use of the environment, without degradation, or undesirable and unintended consequences,” dictates NEPA in the master plan.
Considering what is in the dump, the VA may find itself being forced to fully excavate and remediate the site whether it wants to or not. Otherwise, it may be sued into the next century for unleashing “undesirable and unintended consequences” on excavators, construction workers, Brentwood residents, dog park users and veterans themselves.
The last master plan by the George W. Bush Administration to build out the VA in a private partnership called CARES worth $4 billion crashed and burned, in part due to EnviroReporter.com’s dump revelations. The difference now is that extensive reports on the dump’s contents are available, information that should have been included in any discussion regarding development of the VA’s 388-acre spread.
This time around, cover-ups, goo and toxic gas may crash the latest master plan even though there are many worthwhile aspects to it. Delays and further obfuscations could render a huge area of the VA unusable until it is painstakingly excavated and remediated. The losers, unfortunately, will be the veterans.
IN HOT WATER
The covered up Phase II report is a toxics nightmare. It shows the Brentwood nuclear dump to be worse than EnviroReporter.com ever could have estimated or imagined after Phase I.
Bismuth-214 (Bi-214), with a half-life of just 19.9 minutes making it extremely dangerous, was found in VA dump survey well “MW2” at levels over 5.6 times higher than Bi-214 found in the groundwater of Area IV at the Santa Susana Field Laboratory (SSFL) in 2011. In other words, Brentwood’s nuclear dump’s groundwater in 2009 was hotter with Bi-214 than Area IV of SSFL where three partial nuclear meltdowns occurred.
Thallium-208 was found in VA dump groundwater 47.4 percent higher than at Area IV, which is undergoing a radiological and chemical cleanup costing several hundred million dollars. The radiation average of 22 tests of VA water for Uranium-238 was 44.4 percent over Area IV levels.
Tritium (H-3) is the most prevalent radionuclide in the Brentwood dump as EnviroReporter.com exposed in Real Hot Property May 18, 2006. The 2010 Phase II report, replete with maps and illustrations, confirms just how much of a problem this “heavy water” is at the dump.
“The levels of Tritium detected across the site suggest the presence of burial wastes in or near the study area,” reads Volume 1 of the report. “The Tritium appears to be well diffused across the site, which is not surprising given its mobility and long time period since disposal.”
“Elevated levels of tritium and radium were detected in the groundwater samples,” the report continues. “[T]ritium was reported as the most common nuclide disposed of in the canyon. Its presence at these levels can only be due to that disposal. Background levels of tritium in groundwater are less than 10 pCi/L [picocuries per litre, a radiation measurement]. The 2009 round of sampling from the same wells found tritium at 29, 10 and 29 pCi/L, respectively.”
The VA’s testing contractors, Corona, California-based Allwest Geoscience, returned to pull more groundwater August 16, 2010 and the tritium topped out at 52.5 pCi/L or well over five times what normal background levels should be in the dump. That means all those containers of tritium tossed into the dump are leaking into the groundwater.
Allwest Geoscience, while not testing the mysterious mounds pointed out by EnviroReporter.com in December 2006, nevertheless was adequately detailed when it came to the describing the dump’s tritium.
“Tritium was detected in every plant transpiration water sample collected at levels ranging from 51.0 pCi/L to 130.8 pCi/L,” the VA report said noting elsewhere that the background level of tritium for the site was under 10 pCi/L. “The water collected from the leaves of the plants occurs from transpiration of groundwater by plants whose roots tap the groundwater. Transpired plant water was only analyzed for Tritium, which is both the most prevalent radionuclide reported in the disposal area, the most mobile and most likely to migrate along groundwater pathways. The test results show levels increasing from west to east, with two of three maximum locations occurring between the suspected disposal areas and along the east edge of the investigated area. The northernmost maximum location occurs near the center of a suspected disposal area.”

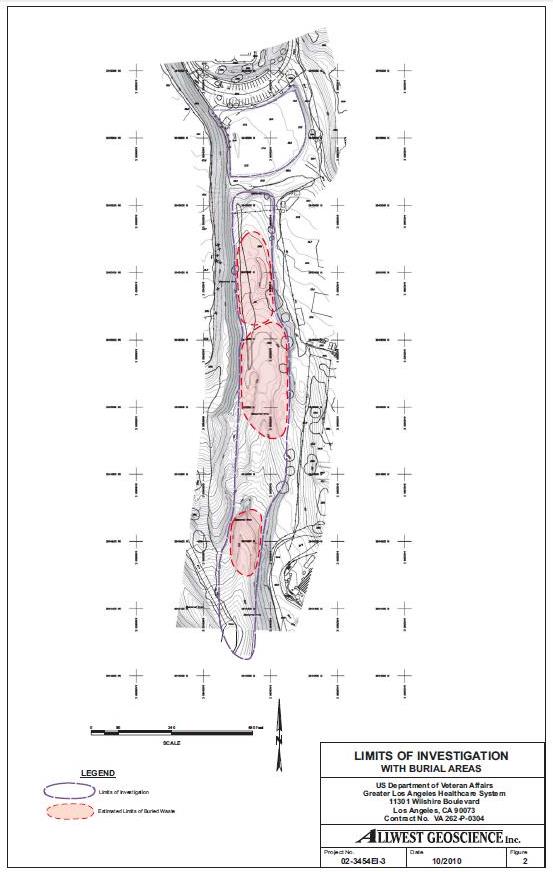

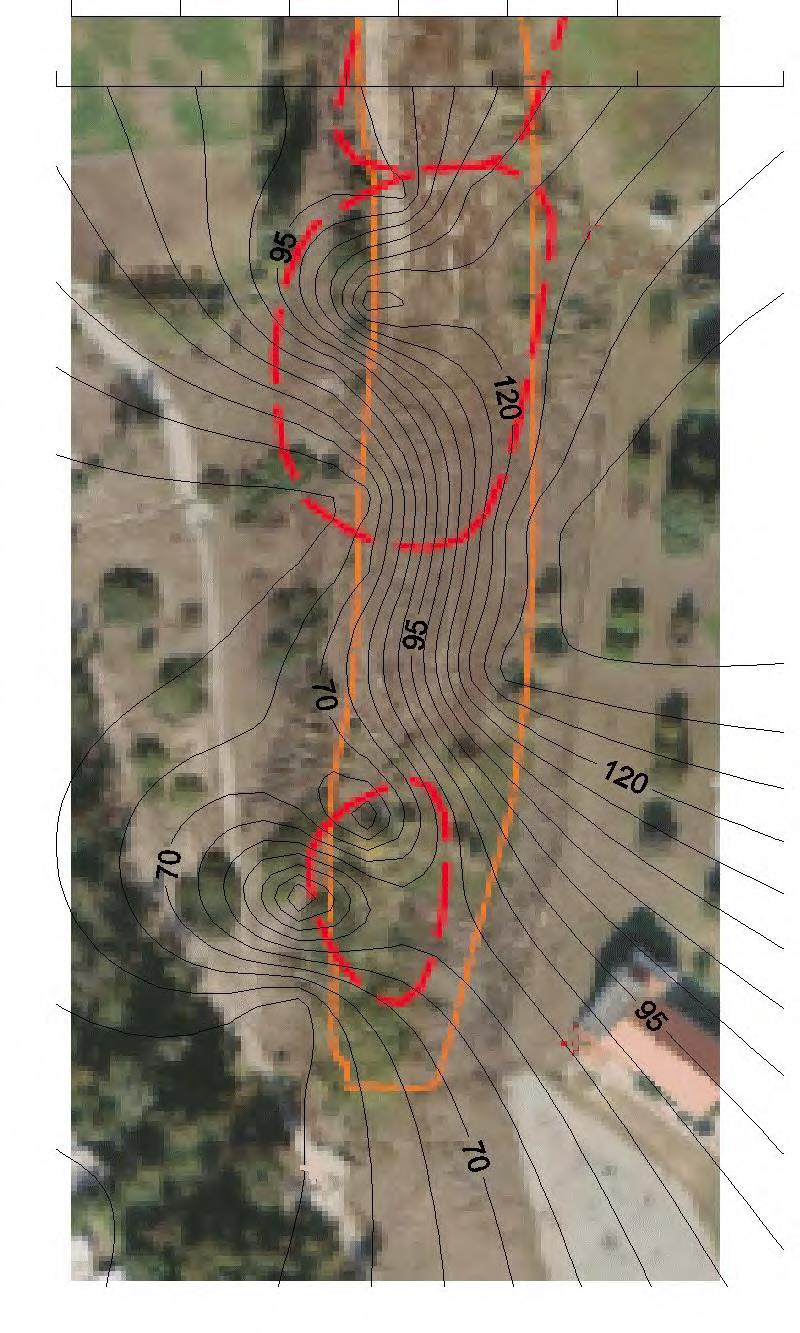

Not only did Allwest Geoscience confirm the dump’s existence, its 2010 report mapped out the exact location of three of the main dumping areas in an arroyo between the VA’s MacArthur Field and the City of Los Angeles-run Barrington Recreational Center with its athletic fields and dog park. Even armed with this knowledge for half a decade, the VA has yet to turn over a spadesful of dirt to dig out and haul away the dump’s radiation and chemicals.

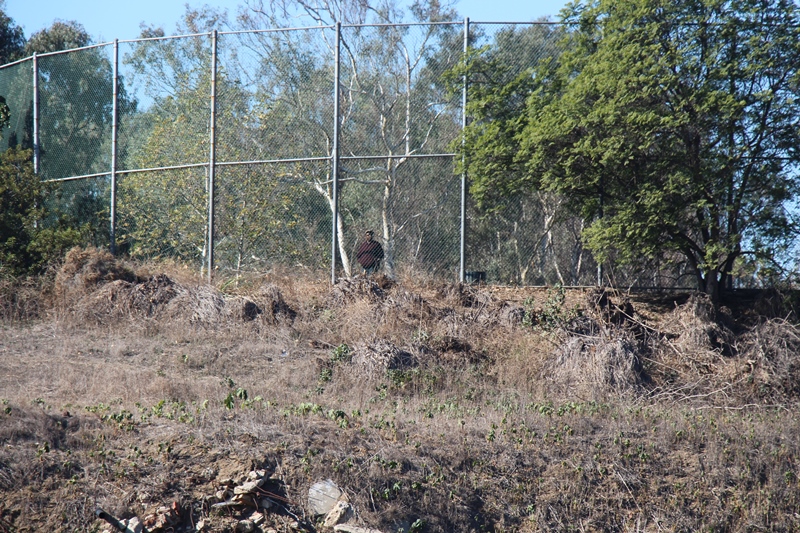

This angers people like Brentwood resident and personal trainer Lisa Wojo. “Why did the Barrington dog park radiation contamination story get buried?” wrote Wojo in an email January 26, 2014. “I’d like to read more information about the truth of the history of the VA dump site for several reasons. It’s extremely important to me.”
When Wojo was informed that no cleanup of the Brentwood nuclear waste dump had happened since the VA’s $1 million testing, she was angry.
“I am appalled to learn that the VA dump site has never been remediated and [am] extremely concerned,” Wojo told EnviroReporter.com December 6. “My dog died last January 2014 after living in Brentwood for one year and visiting the Brentwood dog park every day. Her name was Penelope. She was a Boston terrier Chihuahua Dachshund mix rescue who was a therapy dog.”
Wojo will not be pleased to find out that the VA’s 2008, 2009 and 2010 Phase II nuke dump testing found chemicals in the groundwater and soil vapor that even EnviroReporter.com did not anticipate. These chemicals indicate that the contamination ranges from Brentwood School’s lower athletic field at the northern end of the dump down through the arroyo past and under the athletic fields and dog park all the way to it’s southern terminus by a drain near Brentwood condominiums. It is a huge area with tons of rubble dumped there as well.
DOWN IN THE DUMPS
Toxic solvent 2-butanone tested at nearly four time’s normal in VA dump water in late 2008. Another solvent acetone tested at over 19 times the state average groundwater level in the autumn of 2010. The volatile organic compound (VOC) carbon disulfide tested 4.4 times the state average with another VOC toluene registering 16.9 times California’s average groundwater concentration.

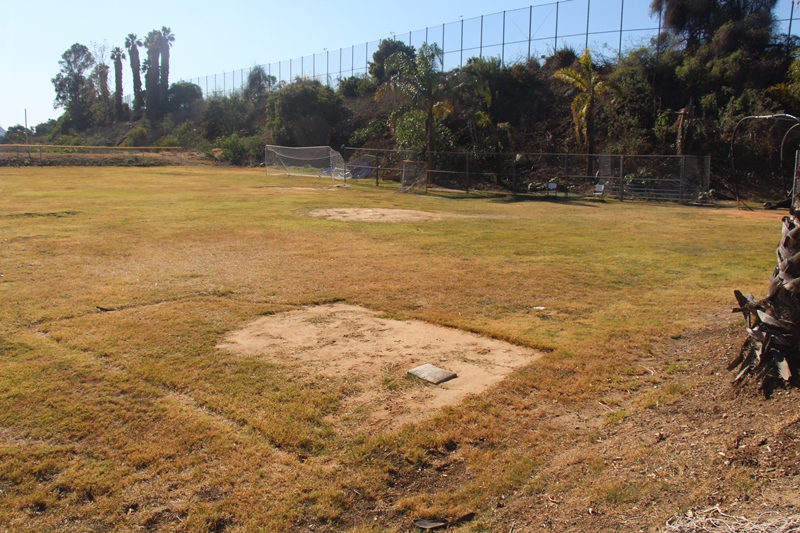

One of the most shocking VA dump test findings was the amount of chloroform gas coming out of the soil of Brentwood School’s southern athletic field. The VA report’s map of the chloroform VOC detections show it to be nearly exclusive to the field area suggesting that long-ago dumped lab waste containing chloroform is underneath that VA land that was leased to the school for many years and generations of school kids trodding the turf.

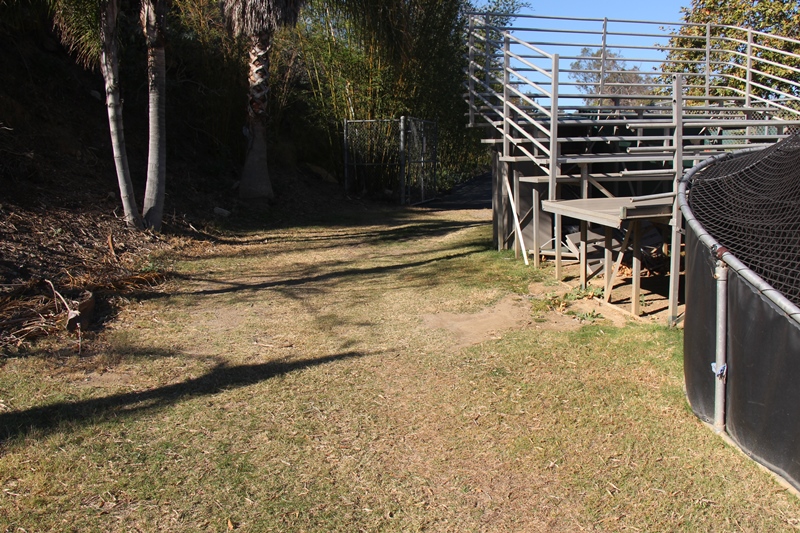

The Brentwood School field is equipped and laid out for soccer and baseball. Directly to the west of the baseball diamond along the first base side, behind a small stands structure for folks to sit and watch, is a wall of rubble standing three stories high bulging with rebar, concrete and debris. This thick layer of rubble is also part of the dump and forms the base of the Barrington Recreational Center’s northern athletic field above.
VA contractors set soil vapor samplers onto the Brentwood School athletic field July 9 and 10, 2008 which were retrieved July 23 and 24 and sent sealed to a lab for analysis. “Chloroform was detected in seventeen (17) passive soil gas samples at masses ranging from 25 ųg to 84 μg,” the report reads. A map of the Brentwood School athletic field accompanies the data and is colored a solid yellow indicating high chloroform gas concentrations.
That range can be compared to the EPA’s Preliminary Remediation Goal (PRG) standards that limit a toxin’s concentration to a level low enough that only one in a million people will get a fatal cancer from it. PRGs have been developed by EPA for many, but not all, chemicals and radionuclides in water, soil and gas, depending on the substance and the scenario.
The Brentwood School athletic field gas readings are extreme. It appears that the chloroform VOC readings are between 301 to 1,012 times the EPA’s PRG. There is no mention of this in the VA’s 2015 master plan. There are also no warning signs around the athletic field alerting users as to the gas in the grass.
Another VOC was detected in the same weeks-long gas sampling of the athletic field, benzene. Samplers were deployed at the same time the chloroform testing began. Two came back positive for benzene gas at 120 to 132 times the EPA’s PRG near the entrance to the field by an immaculately gardened parking lot and spotless drive. Tons of dump rubble falling down the adjacent hill is hidden discreetly with a stand of giant bamboo. The dump has been designed out of sight for the parent motoring by oft times in Roll Royces at this exclusive school which gave rise to the pop band Maroon 5.
A December 9, 2009 sampling of VA groundwater at the other end of the dump found benzene present that exceeded California’s Public Health Goal by over 2.5 times. There is benzene in, under and gassing above the VA’s Brentwood dump, from end to end in some of the most valuable land west of the Mississippi River.
Getting the goo out likely means taking those chloroform readings seriously and digging out the leaking containers of the noxious chemical to stop the leaking and resultant VOC gasses wafting to the surface. It also means removing countless tons of rubble like the wall of wreckage looming over Brentwood School’s southern athletic field and all down the west side of the arroyo adjacent MacArthur Field.
RICH MAN, POOR WATER
The witch’s brew of radiation and chemicals on and under the VA’s Brentwood nuke dump doesn’t stay put, hence why its groundwater contaminants are regulated by state law. The water is mobile and, as would be expected, is moving down gradient southwest through Brentwood and Santa Monica. The 2010 VA toxics report spells it out clearly:
“Groundwater beneath the VA property is within the Santa Monica Hydrologic Subarea of the Coastal Plain Hydrologic Area of the Los Angeles-San Gabriel Hydrologic Unit. Groundwater in the Santa Monica Hydrologic Subarea is designated as existing beneficial use for municipal and domestic supply, industrial service supply, industrial process supply, and agricultural supply (LARWQCB, 1995).”
The acronym stands for the Los Angeles Regional Water Quality Control Board which the VA should have informed of the high total radium in the dump groundwater. This passage citing LARWQCB confirms awareness of the law, making the decision to not inform the water board of the hot water suspect.

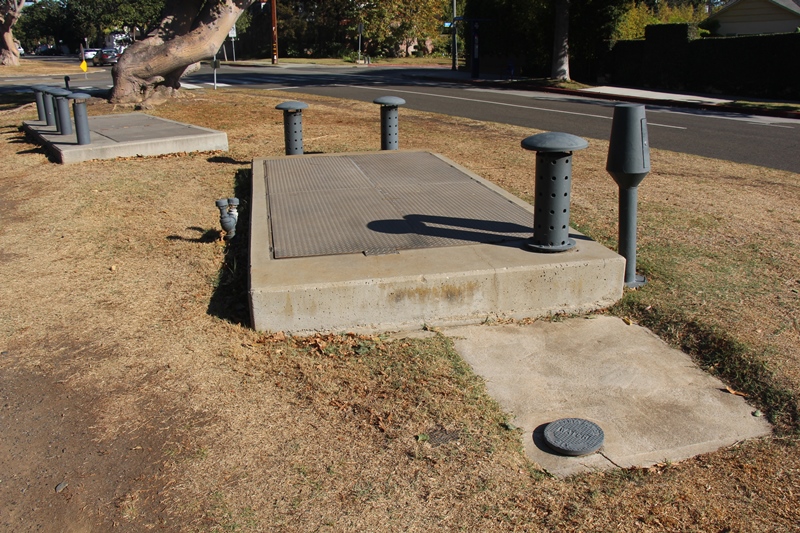

EnviroReporter.com has found evidence that suggests the VA’s nuclear dump may in fact already be impacting Santa Monica’s groundwater well to the southwest of the dump. The well exists in the median of San Vicente Boulevard and 19th Street with water that is hot enough with uranium that Santa Monica Public Works considered installing a $332,000 per year treatment system to just to clean the uranium, not even counting the yearly costs of disposing the resultant radioactive brine.
“The water for this well had a uranium level that ranged from 0.7 to 0.9 pCi/l for the period covered by this report and so must be evaluated for treatment for removal of uranium to below the PHG [Public Health Goal],” a June 2013 report read. “[T]his well is located in the center median of San Vicente Blvd in a residential neighborhood where it would not be feasible to construct even a small treatment plant at the well site.”
Not just any residential neighborhood either. According to a January 27, 2015 Curbed Los Angeles, the area ranked number one in expensive homes. The median cost was $3.1 million in 2014, radioactive groundwater included, no charge.
The Santa Monica well is just 2.4 miles from the VA well, which was found to contain Uranium-238 (Ur-238) in 2009 in dump groundwater at 0.820 pCi/L. The VA’s hot Ur-238 groundwater, uphill from Santa Monica and in the same range as the downgradient San Vicente Boulevard well, registers 44.4 percent hotter than the Ur-238 under SSFL’s grossly polluted Area IV. Greater Los Angeles’ most expensive haunts have that added cache that their groundwater’s uranium is higher than one of the most polluted places in the country.
To be sure, the VA’s cover-up of its 2010 dump toxics report in its 2015 master plan was a long shot considering that people were watching all these years, people like Dr. Bennett Ramberg, a nationally and internationally read columnist on nuclear matters and long-experienced with the Brentwood nuclear dump.
“Where’s the prudence?” asks Ramberg. “The VA master plan fails to acknowledge an inconvenient truth: Part of the Brentwood site sits on a low level nuclear waste dump.”
Indeed, where is the prudence in not telling the water board of the high groundwater radium when legally required to? Or the prudence of not telling Brentwood School that its southern baseball/soccer field has a chloroform and benzene gas problem? Or the prudence that keeps two phases of VA nuclear dump testing from being included in the very same VA’s master plan?
EnviroReporter.com is prudent enough to know that the West LA VA could claim that they never read the article you’re reading now once it is published. It could claim that it never knew that it forgot to include that pesky nuclear dump information, and what to do about it, in the new master plan. That’s why on December 7, EnviroReporter.com submitted a public comment with much of what is included here, and got a receipt to prove it.
The VA cannot escape facing the fact that a toxic waste dump has to be dealt with before any master plan can be successfully implemented. At the very least, they – and the public – have the right to be warned of the peril of playing with polluted land.
FIELDS OF SCHEMES
The VA’s new master plan refers to the dump area in a variety of ways which serves to obscure what would actually happen to the area if the plan is implemented. The dump is shaded in one illustration delineating “Existing Green Space” and in another drawing “Parkland.” One map calls it “Potential Expansion Neighborhood” and yet another “Macarthur Neighborhood” [sic].
When the dump is partially described as the “Arroyo,” VA’s hired planning guns slip into lawyer-speak and fuzz up the plan for the waste site even more. This suggests to EnviroReporter.com that the master plan creators may know exactly what the real deal is with the dump and deliberately left it out of the master plan.
“The arroyo design scheme respects the existing formal neighborhoods, but also acknowledges that a great deal of the site remains very natural and is not as appropriate for rigid formal planning geometries. The north part of the site in particular, has significant topography, terraced landforms, hills, and a gully. The connecting circulation spine in this scheme flows across the curve of the existing landscape and weaves through the more formal areas to the south.”
If the point of a master plan is to plan, then the preceding fails terribly. It is impossible to glean what is even meant by it. The idea that tons of visible rubble over invisible radioactive and chemical goo is “very natural” suggests that VA’s planners haven’t even visited the place. Yet this befuddling description is clear enough as something will be done to the land to connect the “circulation spine in this scheme.”
That means landscaping, grading, digging and all the activities that encompass creating a “circulation spine in this scheme.” Will the gardeners and equipment operators undertaking these activities know what’s in and under the waste site land that they’re working on? Will the construction workers building the “expansion neighborhood” be forewarned of the radioactive and chemical contaminants in containers and barrels that are buried at the site along with carcasses of thousands of nuked lab animals including dogs, cats and rabbits?
The failure to include this information threatens the master plan’s implementation and raises serious questions as to why the VA would quash two of its own reports that show if developed, the dump could unleash radioactive and chemical contamination, expose workers, nearby residents, dog park users, and veterans as well as leave the land a toxic waste dump designed as a park. Perhaps the VA thinks this is a good thing as it would save the scandalously-run place a boatload of money.
The VA should have known since late 2010 that the deadly radionucluides Radium-226, Radium-228, Bismuth-214, Thallium-208, Tritium and Uranium-238 were leaking from the dump into the groundwater at levels that demanded action. VA should have also known that benzene was found in soil vapor in a Brentwood School athletic field on the north end of the dump with the same contaminant fouling groundwater at the southern end of the waste site meaning the entire site is befouled. VA should have told Brentwood School of the chloroform vapor readings at the school’s southern athletic field.
Most importantly, VA should have included these unearthed reports in the master plan because one of the first rules of planning should be not to do it on top of a confirmed biomedical nuclear and chemical waste site, especially one as large and contaminated as the Brentwood dump. Short of cleaning it up entirely to stop the leaking barrels of radioactive goo from continuing to nuke Los Angeles and Santa Monica groundwater, VA could at least let people know how polluted the place is.
“This cover up is unconscionable and should be rectified immediately,” Brentwood resident and dog park denizen Lisa Wojo told EnviroReporter.com. “If the dump is in fact located underneath the dog park then of course it needs to be closed down and remediated effectively and safely for the sake of the dogs as well as for all of the residents of Brentwood.”
Dr. Bennett Ramberg would agree with that sentiment. The longtime VA nuke dump observer figures if the VA is going to cover-up the waste site, they should just leave it as it is, literally covered up.
“Unless authorities excavate the waste and send the material and contaminated soil to a licensed landfill, no construction, excavation, recreation, or agriculture should take place in and around the contaminated zone,” Ramberg said. “It should be fenced off and remain off limits.”
